Curiosities in wind energy utilization 1

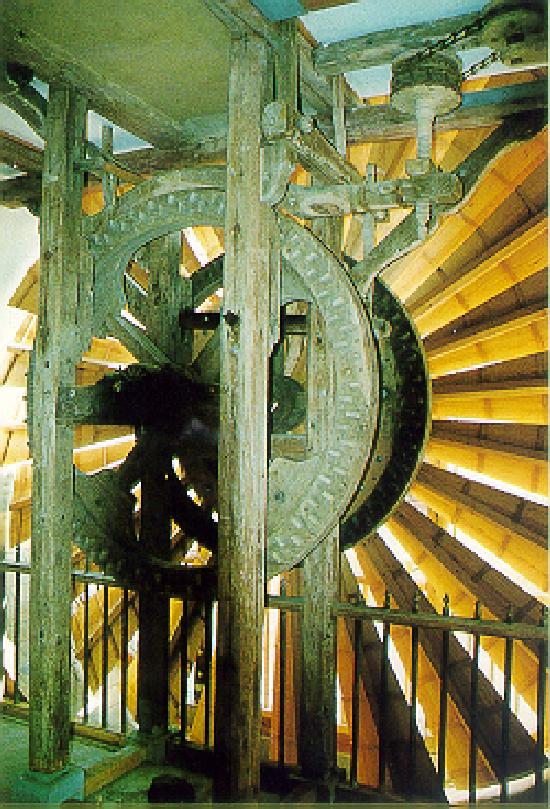

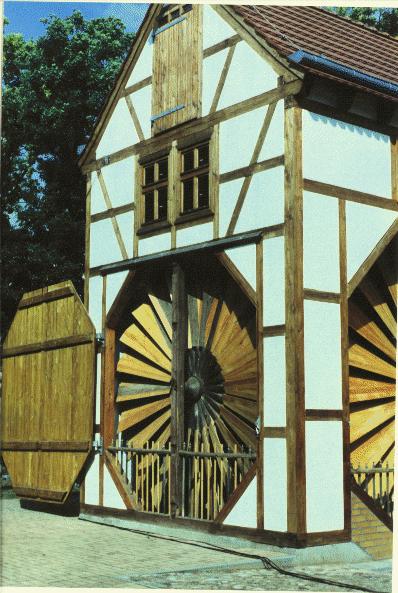

If this barn windmill has operated effectively is not hand down.
Perhaps a better aeration of the barn was achieved,
drying the stored hay or straw.
This " wind system " can be visited in:
Municipality Saalow, district Teltow Flaeming, Germany
Information:
Office at the Mellensee, main street 8, D - 15 838 Sperenberg,
Tel.: +49 33703 770-37, fax: +49 33703 -770-39

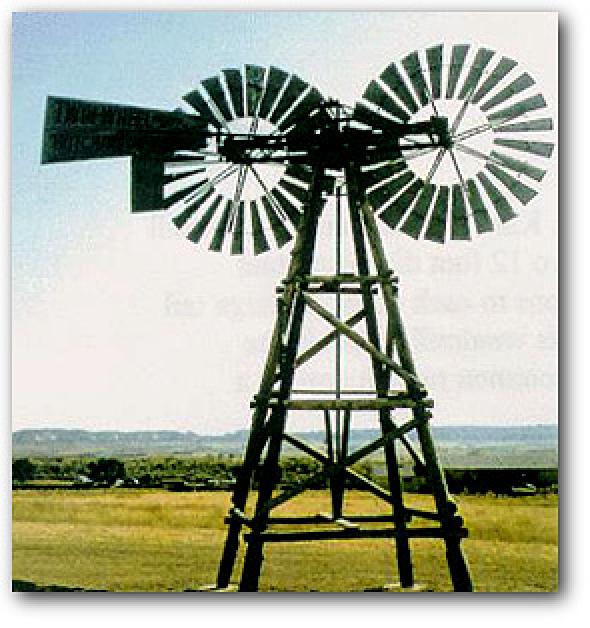

Whether this ' westernmill ' brings actually the double performance
is uncertain.
One of the two rotors is always aligned in the wrong
winddirection, a little bit 'falsely ', because a windrotor-system
operates always in a full turbulent boundary layer.
And if you think on oscillation problems! . . .
In any case the most economic concept is: not several rotors on a
mast or a tower, only one rotor on the top of one tower.

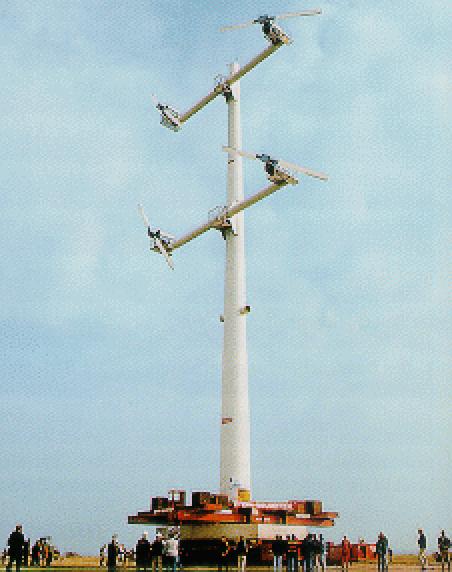

Nevertheless, once again, the fruitless attempt is made. The company
Lagerwey set up its "Four in one"-system, the Quadro-mill, in the
proximity of Rotterdam, nearby Maasvlakte. The total mass of the system
is roughly 400 tons. But please make the following calculation:
take these 400 tons and build up a modern 1.5 MW windconverter (for example,
the ENERCON E-66). This machine weighs roughly 250 tons, with 66 m diameter
and 65 m tower and with 34.421 m2 circular area. The harvested energy quantities, at the same site, show quite clearly where" the journey of wind energy sytems" goes to:
E-66 approx. 3.5 millions kwh/a, Lagerwey Quadro 0.6 millions a kwh/a.
More than in all other fields of the technique counts in the area of wind
enery utilization the relation: expenditure to earnings to be" economically ".
The fact that the multiple rotor is really no idea of "modern times " shows
a proposal, made by Fisher (Denmark) in 1974 and another, made by professor
Heronemus (USA).
Jean Fisher suggested as aesthet and architect a building with a multiplicity of
Darrieus rotors.

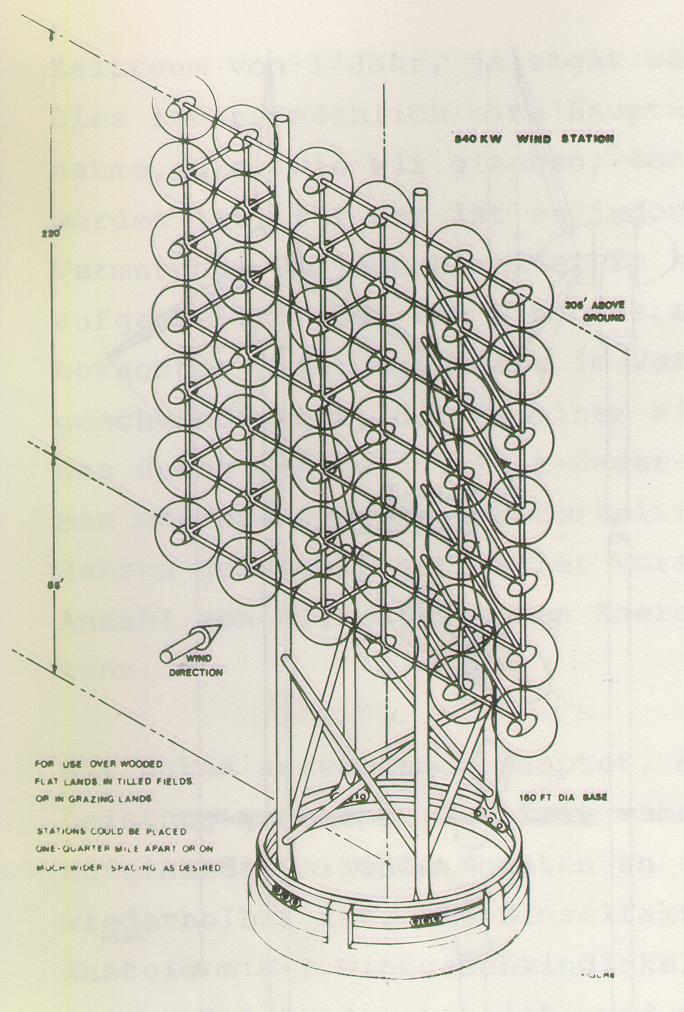

Professor W.E. Heronemus, University of Massachusetts, years ago,
wanted to establish many 20 KW of horizontal axis rotors on a tower
with a large turntable at the bottom for wind direction control.
The same system he wants to erect offshore, like a buoy tumbling in the surf.
Both suggestions were never carried out.
At the beginning of the eighties a fixed idea of Dr.Wagner, from the island Sylt, Germany, attracted attention. He build a V-Darrieus-Rotor and installed this device on the deck of an old fishing-boat.
He wanted to become known and rich with this floating and mobile offshore-wind system.
He planned a whole type-family of wind energy converters from 3 MW
(80 m rotorblade length/2 m rotorblade depth at the blade tip/6 m rototblade
depth at the blade root (hubposition)), 5 MW (100/2,4/8 m), 10 MW (140/3,6/10 m) up to 100 MW (370/9,2/30 m).
